RA-DC17251
12/24/48V 255cfm 210Pa 63Db
Details
Model No. | RA-ECC220 |

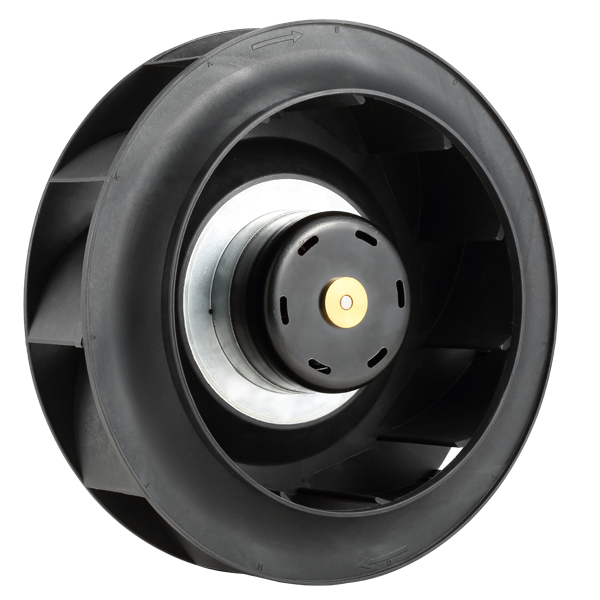

Product Types | Backward Curved Centrifugal Fan |
Product Types | EC Motor |

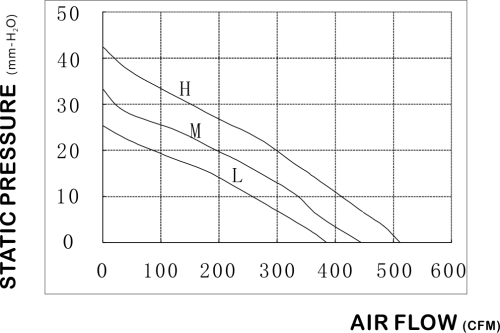

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
220L | 220 | 0.26 | 34 | 2000 | 249 | 654.12 | 385 | 63 |
220M | 220 | 0.37 | 50 | 2300 | 327 | 754.36 | 444 | 67 |
220H | 220 | 0.48 | 70 | 2600 | 417 | 868.19 | 511 | 71 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
