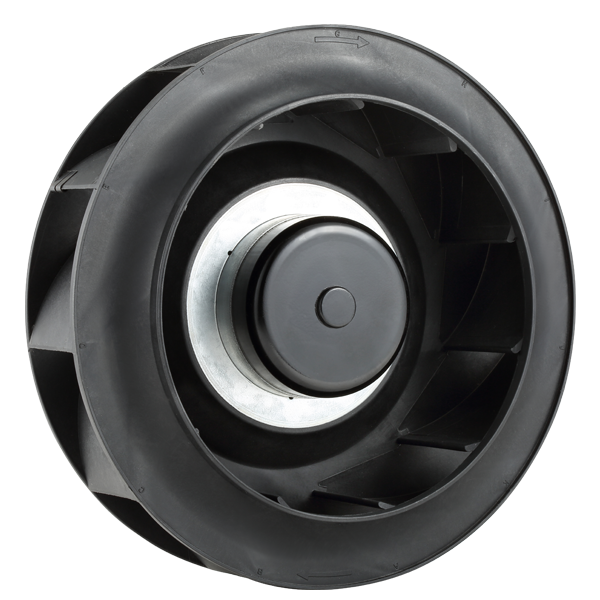

DC-RA9225
12/24V 53cfm 39Pa 37Db
Details
Model No. | RA-DCC220 |
Product Types | Centrifugal Fan |
Product Types | Brushless DC Motor |

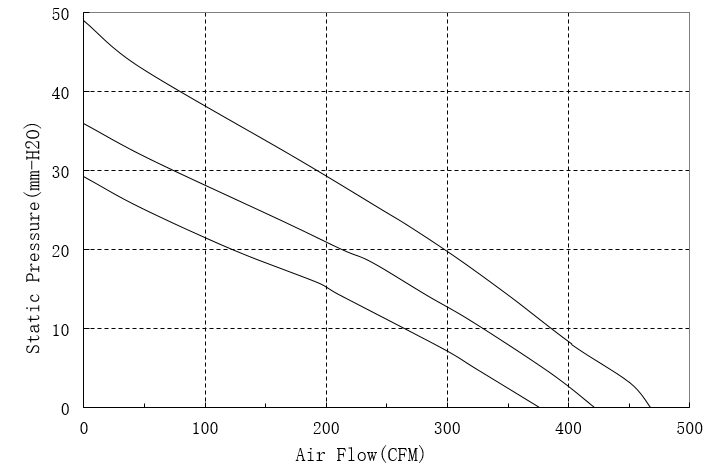

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
24L | 24 | 1.55 | 37.20 | 2000 | 289 | 638.82 | 376 | 63 |
24M | 24 | 2.25 | 54.00 | 2300 | 353 | 715.28 | 421 | 67 |
24H | 24 | 3.15 | 75.60 | 2600 | 481 | 793.43 | 467 | 71 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
