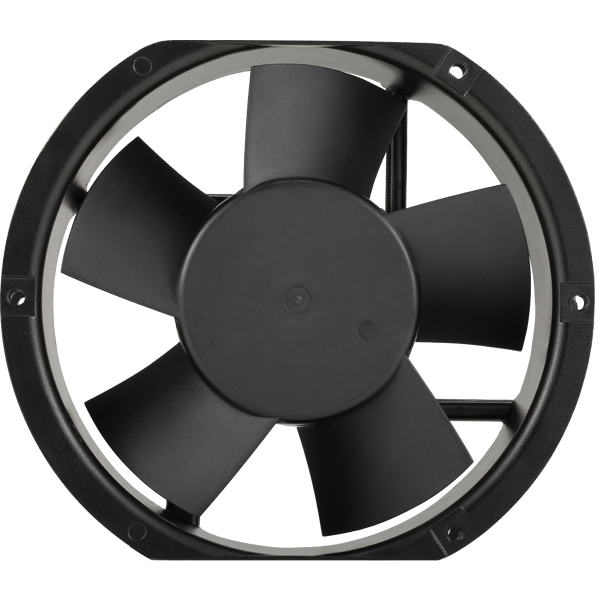

RA-DCC220
24V 467cfm 480Pa 71Db
Details
Model No. | RA-AC17251 |
Product Types | Axial Fan |
Product Types | AC Motor |
Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
AC20060 | 120/230 50/60Hz | 0.12~0.45 | 38 | 3000 | 130 | 333 | 196 | 54 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | Plastic and Aluminum |
Approvals | UL CE CCC |
Speed Control | Avalible |
Protected | Lock Auto-start Overload |
Out Signal | No |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 80000 hours |
