RA-DC12038
12/24/48V 178cfm 188Pa 58Db
Details

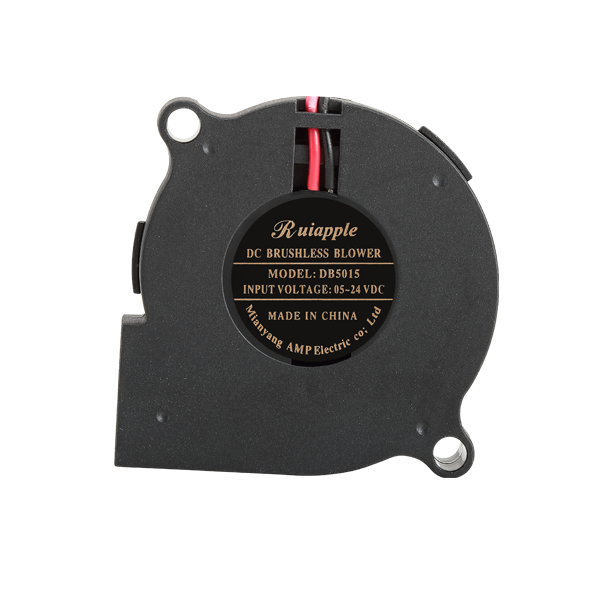

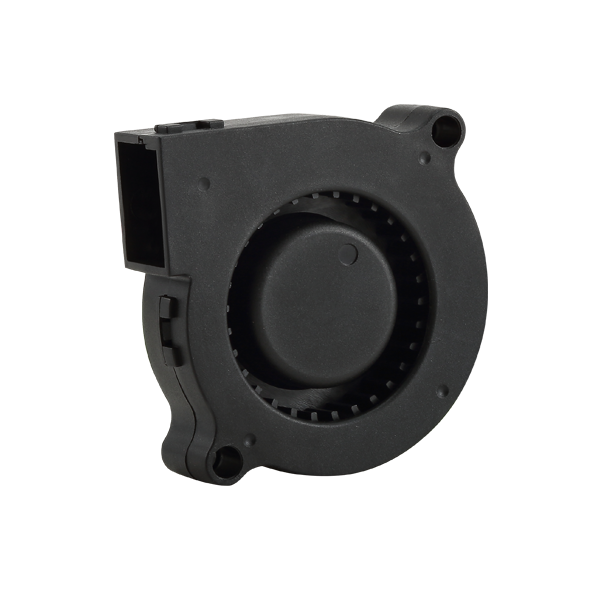

Model No. | RA-DB5015 |
Product Types | Blower Fan |
Product Types | Brushless DC Motor |
Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
12L | 12 | 0.08 | 0.96 | 4000 | 82 | 3.74 | 2.2 | 31 |
12M | 12 | 0.11 | 1.32 | 5000 | 139 | 5.44 | 3.2 | 37 |
12H | 12 | 0.18 | 2.16 | 6000 | 225 | 6.29 | 3.7 | 43 |
24L | 24 | 0.06 | 1.44 | 4000 | 82 | 3.74 | 2.2 | 31 |
24M | 24 | 0.08 | 1.92 | 5000 | 139 | 5.44 | 3.2 | 37 |
24H | 24 | 0.10 | 2.40 | 6000 | 225 | 6.29 | 3.7 | 43 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
