RA-ECC175
110/230V 426cfm 520Pa 69Db
Details

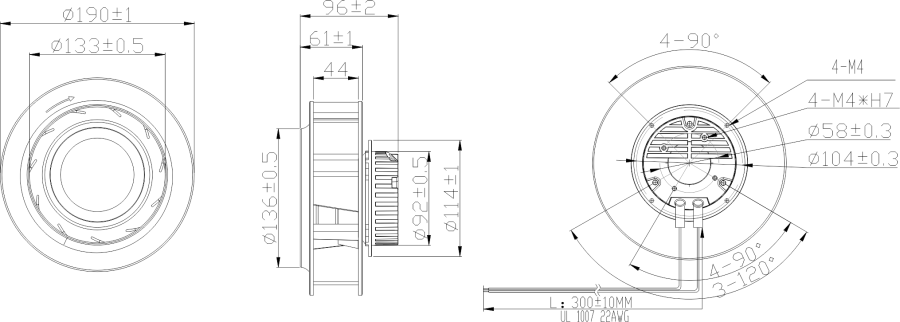

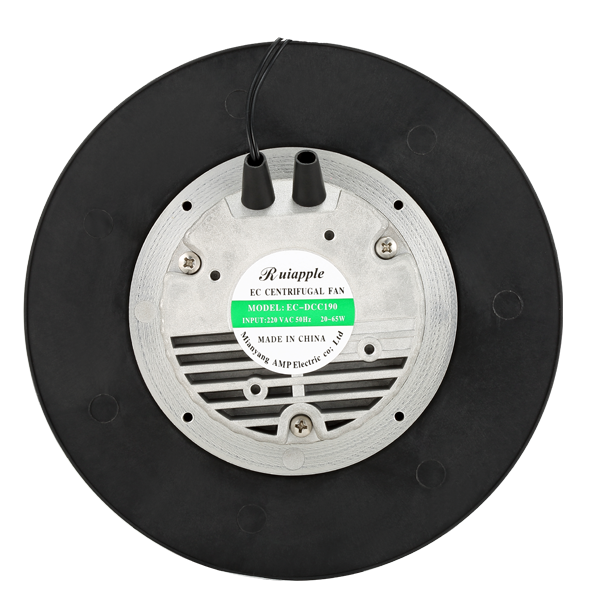

Model No. | RA-ECC190 |
Product Types | Backward Curved Centrifugal Fan |
Product Types | EC Motor |

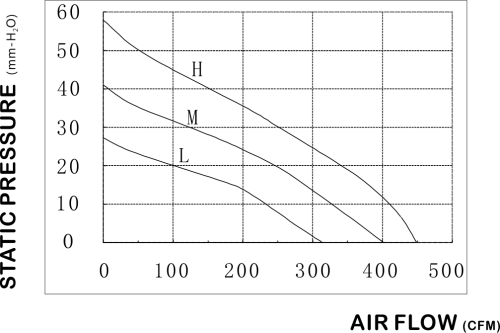

Model: | Voltage (V) | Current (A) | Power(W) | Speed(RPM) | Pressure (Pa) | Air Flow(m³/h) | Air Flow(CFM) | Noise (dB) |
220L | 220 | 0.20 | 26 | 2300 | 267 | 531.79 | 313 | 63 |
220M | 220 | 0.34 | 48 | 2800 | 402 | 681.30 | 401 | 68 |
220H | 220 | 0.47 | 70 | 3300 | 567 | 761.15 | 448 | 72 |
Customized | √ | √ | √ | √ | √ | √ | √ | √ |
Bearing Type | Ball OR Sleeve |
Impeller and Fram | PBT PLASTIC |
Approvals | UL CE CCC |
Speed Control | PWM VSP Temperature Control Fix Speed with Pressure Intermittent |
Protected | Lock Auto-start Overload |
Out Signal | FG RD LD |
Insulation Class | B |
Insulation Resistance | 10MΩ/500V DC |
Dielectric Strength | 2Min/500V AC/5mA |
Insulation Class | F |
Relative Humidity | 20%-85% |
Working Temperature | -10℃/+60℃ |
Max Life | 8000 hours |
