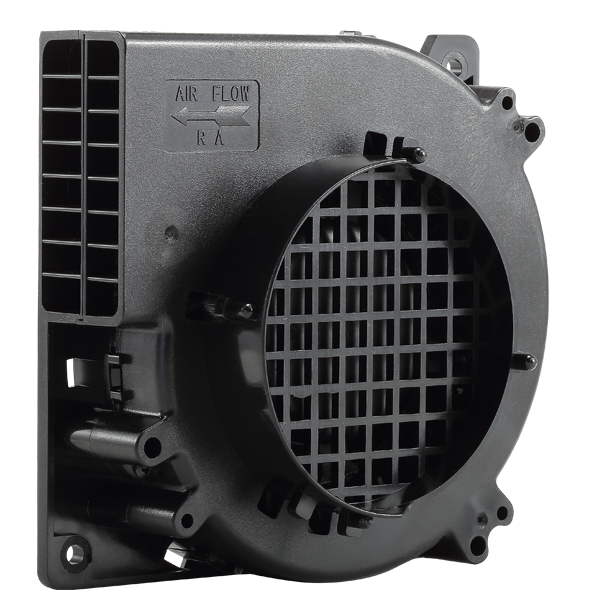

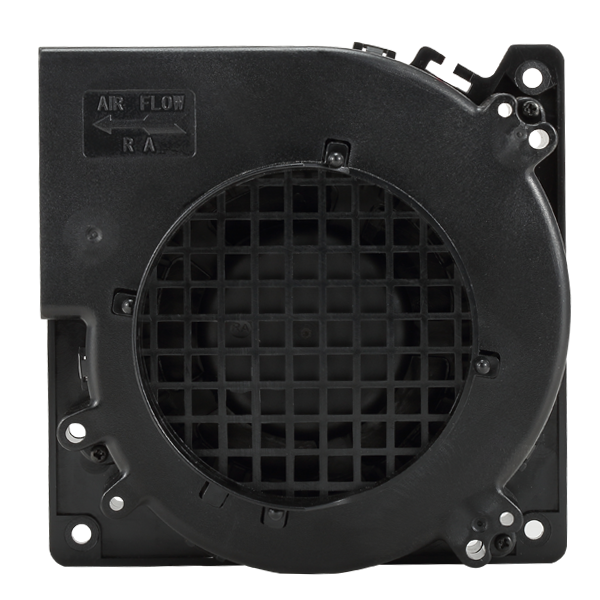

RA-DB12032A
Product description:
Blowers focus more on pressure than air volume. For the highest level of efficient air movement, Ruiapple blowers are known throughout the industry for their durability and exceptional performance. Available in standard or high-efficiency models,Ruiapple blowers are suitable for a variety of applications. Numerous configurations and options such as tachometer, rotation detection, OV protection, alarm output, and thermal speed control are available. Ruiapple blowers include standard designs that are all uniquely engineered for high quality, value, and performance meeting the needs of today's demanding applications. Can be customized for specific applications. The DC blower can withstand harsh weather, extreme environments, as well as dust and moisture. Additional features that can be added are Automatic Temperature Control, Auto Start, Rotation Detector, Tachometer, Life Detection, Voltage Signal Control, and more. With various PTI controls aspects such as voltage fluctuations from power supplies can be reduced. Additionally, protection is enhanced, and optimum performance is ensured.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-DB12032A

Product Types

Blower Fan

Product Types

Brushless DC Motor


Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h

Air Flow(CFM)

Noise  (dB)

12L

12

0.31

3.72

2000

123

33.13

19.50

43

12M

12

0.52

6.24

2500

235

46.72

27.50

48

12H

12

0.78

9.36

3000

319

57.77

34.00

52

24L

24

0.18

4.32

2000

123

33.13

19.50

43

24M

24

0.30

7.20

2500

235

46.72

27.50

48

24H

24

0.45

10.80

3000

319

57.77

34.00

52

Customized


Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

10MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

8000 hours
