RA-DC2006
Product description:

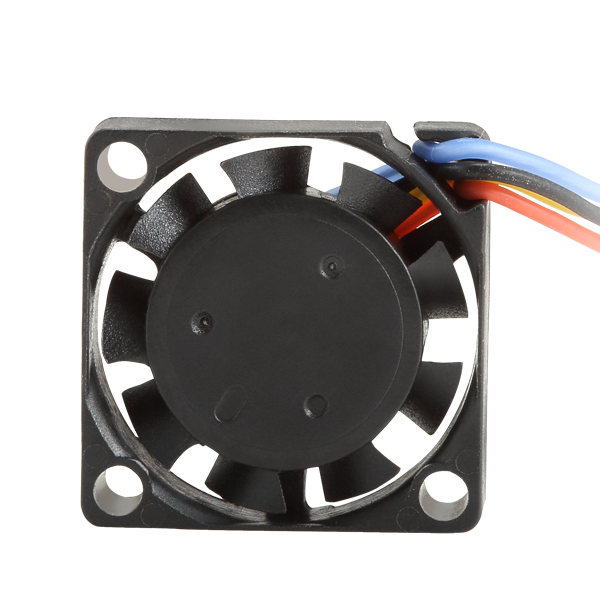

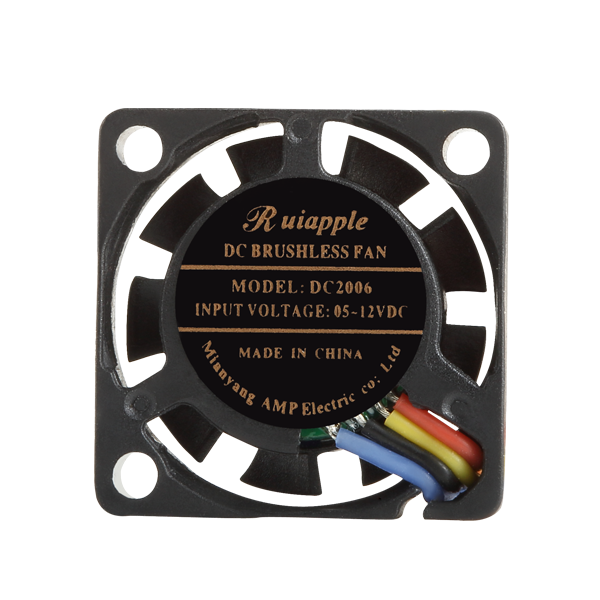

This 20mm dc axial fan is aimed at smaller thinner low power consumption low vibration low noise and extra design good for long-term use. Widely-used products in the air detection sensor in the air purification product it's a key component that can help air diversion intake and remove stale air detect airborne particles PM2.5 and other pollutants. it work with high-precision sensors to provide accurate data and make product has good performance.The product series is RoHS compliant and is also certified according to many quality management accreditation systems and has gained various accreditations such as UL TUV and VDE. Every model undergoes rigorous testing to achieve minimum noise under high airflow and air pressure conditions. All models are meet strict reliability requirements.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-DC2006

Product Types

Axial Fan

Product Types

Brushless DC Motor


Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h)

Air Flow(CFM)

Noise  (dB)

5L

5

0.03

0.45

6000

8

0.76

0.45

10

5M

5

0.06

0.3

10000

20

1.2

0.7

19

5H

5

0.09

0.15

15000

37

1.8

1.05

28

12L

12

0.03

0.36

6000

8

0.76

0.45

10

12M

12

0.04

0.48

10000

20

1.2

0.7

19

12H

12

0.05

0.6

15000

37

1.8

1.05

28

Customized









Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

10MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

80000 hours
