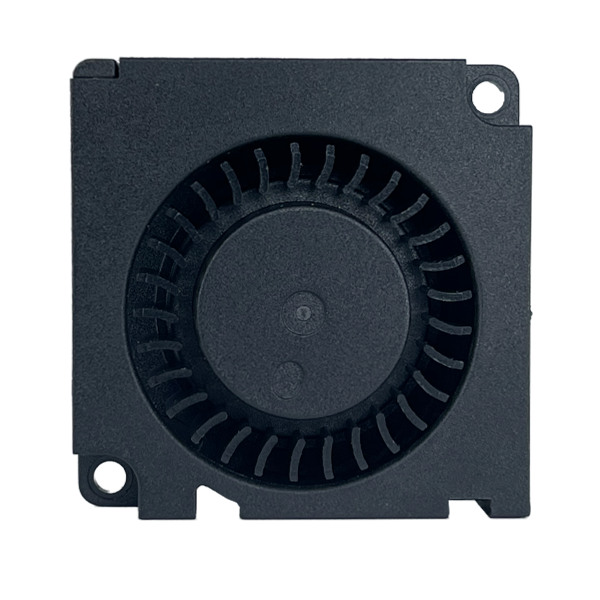

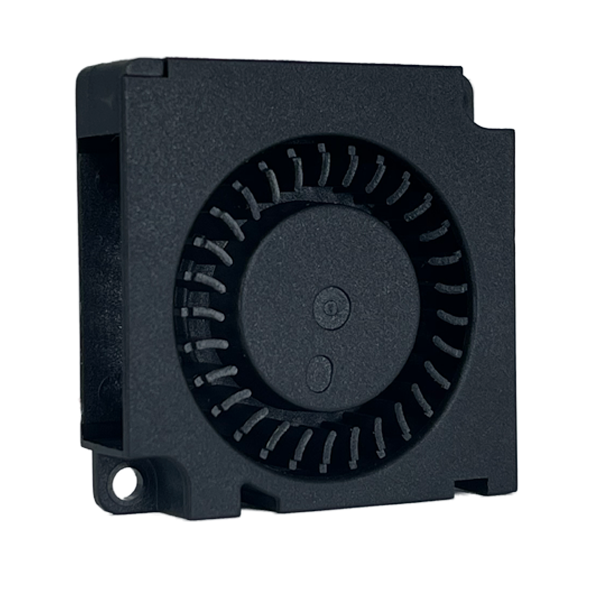

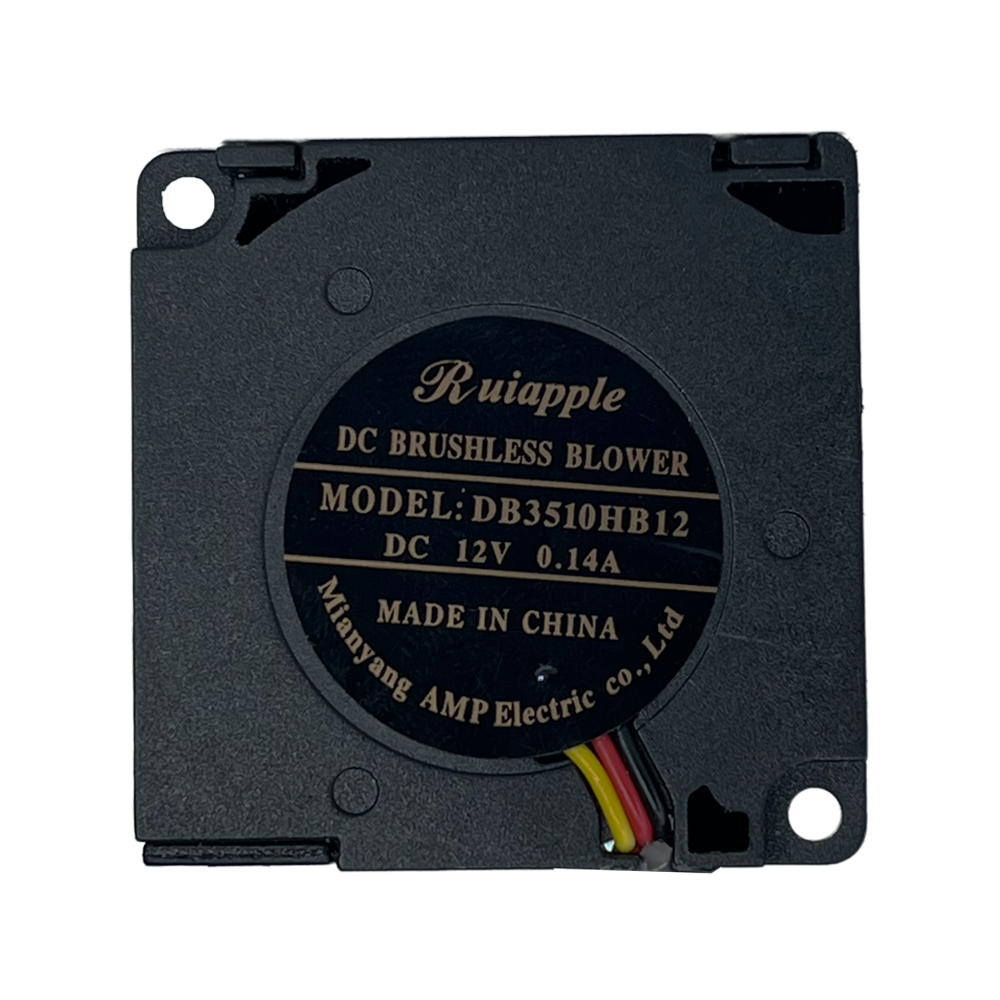

RA-DB3510
Product description:
Blowers focus more on pressure than air volume. For the highest level of efficient air movement, Ruiapple blowers are known throughout the industry for their durability and exceptional performance. Available in standard or high-efficiency models,Ruiapple blowers are suitable for a variety of applications. Numerous configurations and options such as tachometer, rotation detection, OV protection, alarm output, and thermal speed control are available. Ruiapple blowers include standard designs that are all uniquely engineered for high quality, value, and performance meeting the needs of today's demanding applications. Can be customized for specific applications. The DC blower can withstand harsh weather, extreme environments, as well as dust and moisture. Additional features that can be added are Automatic Temperature Control, Auto Start, Rotation Detector, Tachometer, Life Detection, Voltage Signal Control, and more. With various PTI controls aspects such as voltage fluctuations from power supplies can be reduced. Additionally, protection is enhanced, and optimum performance is ensured.

Data Sheet
Detailed Parameters
Model No. & Category

Model No.

RA-DC9225

Product Types

Axial Fan

Product Types

Brushless DC Motor


Basic Parameters

Model:

Voltage  (V)

Current  (A)

Power(W)

Speed(RPM)

Pressure (Pa)

Air Flow(m³/h)

Air Flow(CFM)

Noise  (dB)

12L

12

0.09

1.1

2000

17

65

38

27

12M

12

0.14

1.7

2500

31

88

52

32

12H

12

0.24

2.9

3000

42

99

58

37

24L

24

0.07

1.68

2000

17

65

38

27

24M

24

0.1

2.4

2500

31

88

52

32

24H

24

0.18

4.3

3000

42

99

58

37

Customized









Product Information

Bearing Type

Ball OR Sleeve

Impeller and Fram

PBT PLASTIC

Approvals

UL CE CCC

Speed Control

PWM VSP Temperature Control Fix Speed with Pressure Intermittent

Protected

Lock Auto-start Overload

Out Signal

FG RD LD

Insulation Class

B

Insulation Resistance

10MΩ/500V DC

Dielectric Strength

2Min/500V AC/5mA

Insulation Class

F

Relative Humidity

20%-85%

Working Temperature

-10℃/+60℃

Max Life

80000 hours
